| CLASS | ROD SEAL TYPE |
SECTION | MATERIAL | HARDNESS SHORE A |
ADAPTABLE TEMP (oC) |
PRESSURE |
| SYMME-TRICAL SEAL | UN |
 |
TPU | 93 | -20 ~ +100 | 30 MPA |
| D-6 |
 |
TPU + NBR | 93 | -20 ~ +100 | 35 MPA | |
| PISTON SEAL | D-1 |
 |
TPU | 95 | -20 ~ +100 | 40 MPA |
| ROD SEAL | D-2 |
 |
TPU | 95 | -20 ~ +100 | 40 MPA |
| ROD SEAL | D-3 |
 |
TPU | 93 | -20 ~ +100 | 40 MPA |
| PISTON SEAL | D-4 |
 |
TPU | 90¡Ó2 | -20 ~ +100 | 30 MPA |
| ROD SEAL | D-5 |
 |
GM-90 | 90¡Ó2 | -20~100 | 400 |
CLASS TYPE SECTION MATERIAL HARDNESS
SHORE AADAPTABLE
TEMP (oC)PRESSURE

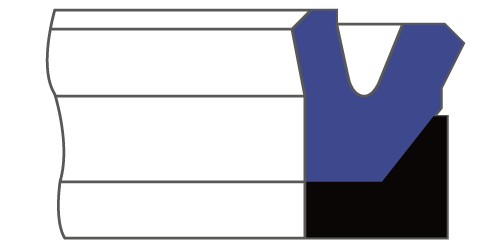

¡@PISTON SEAL D-8 TPU+ PA 95 -20 ~ +100 ¡@ 40 MPA

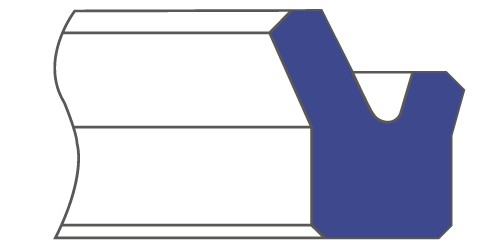

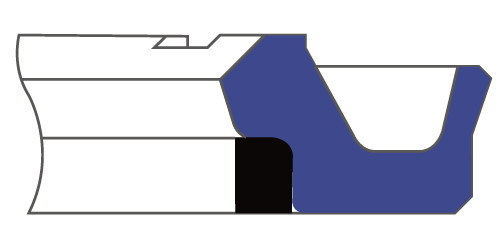

¡@DUST SEAL D-9 TPU 95 -20 ~ +100 BUFFER RING D-10 TPU+ PA 95¡Ó2 -20 ~ +100 ¡@ 40 MPA
DUST SEAL DH TPU 93 -20 ~ +100 DH-03 TPU 93 -20 ~ +100 DH-04 TPU 93 -20 ~ +100 DH-05 TPU 93 -20 ~ +100 DH-07 TPU 93 -20 ~ +100 ¡@
